MODEL |
CYT100S |
CYT350S |
CYT350SD |
CYT750S |
CYT1000SD |
Capacity (kg) |
1000 |
350 |
350 |
750 |
1000 |
Lifting height (mm) |
1260 |
1300 |
1300 |
1500 |
1700 |
Lowered height (mm) |
330 |
345 |
345 |
450 |
500 |
Table size (mm) |
700X450X35 |
905X512X55 |
905X512X55 |
1220X610X55 |
1220X610X55 |
Weight (kg) |
52 |
113 |
110 |
185 |
240 |
Remark |
*S=double scissors *D=with fission Cylinder |

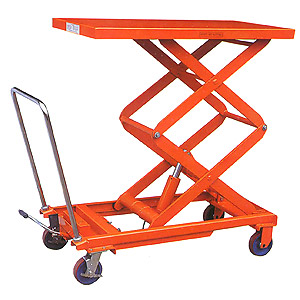

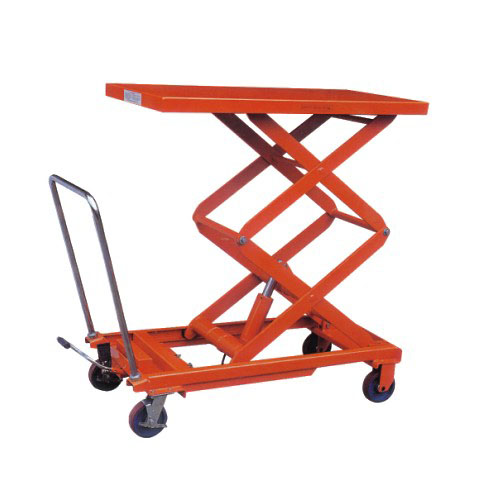

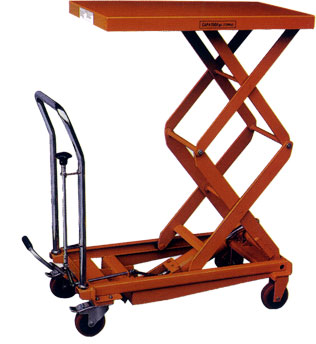

Valuable material handling for use as a feeding table on assembly line.
• Structural heavy duty steel construction.
• Easy action foot operated hydraulic lift for raising table top to desired level.
• Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.
• Hand operated table descent control.
• Over load by-pass valve protects operator and pump.
• Option: chrome plated handle, painted handle, folding handle&solid handle.
