Model | CTJ500 | CTJ1000 | CTJ1500 | CTJ1000A |
Loading capacity(kg) | 500 | 1000 | 1500 | 1000 |
Lifting speed (mm/sec) | 0~140 | 0~60 | 0~40 | 0~60 |
Lifting height (mm) | 1500 | 1500 | 1500 | 1400 |
Outline dimension (mm) | 1200×620×1990 | 1260×680×2020 | 1480×800×2035 | 1220×680×1890 |
Fork length (mm) | 800 | 800 | 900 | 800 |
Front wheel (mm) | Φ90 | Φ90 | Φ90 | Φ90 |
Rear wheel (mm) | Φ180 | Φ180 | Φ180 | Φ180 |
Mesh line (mm) | Φ2.8~3.5 | Φ2.8~3.5 | Φ2.8~3.5 | Φ2.8~3.5 |
Goods outside width (mm) | 190~420 | 230~530 | 260~640 | 230~530 |
Brake | No | No | No | Yes |
Outside width of Straddle (mm) | 620 | 680 | 800 | 680 |
Loading center (mm) | 400 | 400 | 450 | 400 |

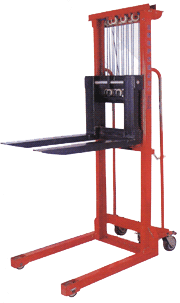

•Simple, easy way to lift, lower and transport heavy loads with minimum effort.
Features adjustable width forks and outrigger legs.
Low effort hand winch equipped with automatic brake systems and adjustable length handle.
Swivel casters feature foot brake to prevent movement.
Optional Steel Platform - Fits H140501. Solid steel construction, Fits over forks. Easily removed.
