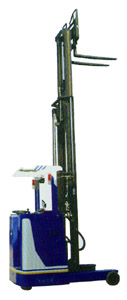

Dalong DCQD15/20 Electric Reach Truck DCQD15/20
Brand：MEISHI
-
![]()
Wuxi Dalong Electric Machinery Works
VIP商家 - Mode：Forklift Truck Manufacturer
- Area：ChinaJiangsu
- Address：Wuxing Economic Park, Gangxia, Wuxi, Jiangsu, China
- All Products Enter Shop
Description
Parameters
Product Picture
|
Specifications |
CQD15 |
CQD20 | |
|
Rated Lifting Capacity (Kg) |
1500 |
2000 | |
|
Load Center (mm) |
500 |
500 | |
|
Maximum Lifting Height (mm) |
3000 |
3000 | |
|
Free Lifting Height (mm) |
330 |
330 | |
|
Maximum Lifting Speed (m/min) |
12 |
12 | |
|
Maximum Traveling Speed (km/h) |
7.8 |
7.7 | |
|
Front Distance of Mast (mm) |
500 |
550 | |
|
Tilting Angle of Fork (backward & forward) (deg) |
3/5 |
3/5 | |
|
Minimum Ground Clearance (mm) |
80 |
80 | |
|
Minimum Turning Radius (mm) |
1680 |
1750 | |
|
Climbing Degree (Full %) |
12 |
10 | |
|
Traveling Motor (kw) |
Type |
XQ-3.7 |
XQ-3.7 |
|
Rated Power |
3.7 |
3.7 | |
|
Oil Pump Motor (kw) |
Type |
XQD-4-6 |
XQD-4-6 |
|
Power |
5 |
5 | |
|
Turning Motor (kw) |
Type |
XQD-0.55-3 |
XQD-0.55-3 |
|
Power |
0.55 |
0.55 | |
|
Controlling Mode |
Chopper/Resistant |
Chopper/Resistant | |
|
Battery (v) |
Voltage(v) |
48 |
48 |
|
Capacity(A-h) |
390 |
390 | |
|
Length (mm) |
2250 |
2300 | |
|
Width (mm) |
1250 |
1300 | |
|
Height of Overguard (mm) |
2160 |
2160 | |
|
Height of Lowest-level Mast (mm) |
2120 |
2120 | |
|
Weight (kg) |
2650 |
2850 | |
