Standard Hand Pallet Truck
-
Shanghai Granda Machinery and Equipment Co., Ltd
普通商家 - Mode:Others
- Area:ChinaShanghaiZhabei
- All Products Enter Shop
Description
Parameters
Product Picture
Product Features:

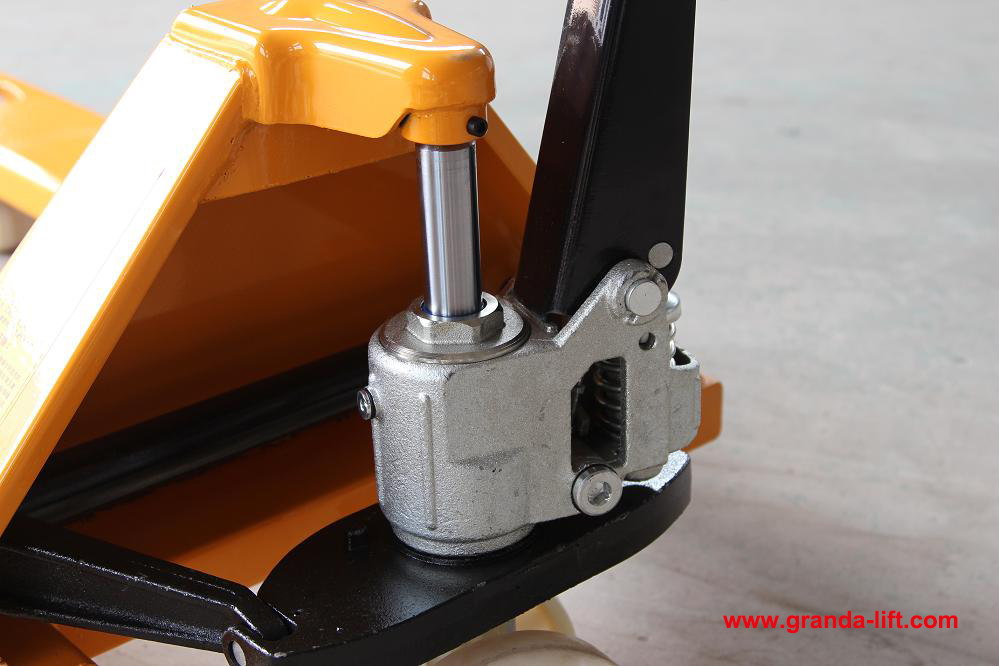

Pump sealed as a whole, the original key components imported from Germany, to eradicate the ills of oil spills, the size of the piston rod chrome plated solid structure, with overload protection, decreased speed control spool with a whole piece, unlike the scattered parts, ease of maintenance, thus to make the car more responsive to market demand.
Moving parts equipped with alloy hub, able to absorb partial load, wear resistance, long life and easy replacement.
Model | AC20 | AC25 | AC30 | ||||
Load Capacity Q | kg | 2000 | 2500 | 3000 | |||
Lowered fork height h | mm | 85 | 75 | 85 | 75 | 85 | 75 |
Max.fork height h1 | mm | 200 | 190 | 200 | 190 | 200 | 190 |
Steering Wheel | mm | Φ200x50 | Φ180x50 | Φ200x50 | Φ180x50 | Φ200x50 | Φ180x50 |
Fork wheel single | mm | Φ80x93 | Φ74x93 | Φ80x93 | Φ74x93 | Φ80x93 | Φ74x93 |
Fork wheel tandem | mm | Φ80x70 | Φ74x70 | Φ80x70 | Φ74x70 | Φ80x70 | Φ74x70 |
Fork Size e*s | mm | 160x50 | 160x60 | ||||
Width overall forks B | mm | 450/520/540/685 | |||||
Fork length l | mm | 800/900/1000/1100/1150/1220 |
