Towing Tractor
-
![]()
Shanghai Beili Machinery Manufacturing Co., Ltd.
普通商家 - Mode：Forklift Truck Manufacturer
- Area：ChinaShanghai
- Address：19 Hangsheng Road,Hangtou Damaiwang Industry Park,Nanhui, Shanghai, P.R.China
- All Products Enter Shop
Description
Parameters

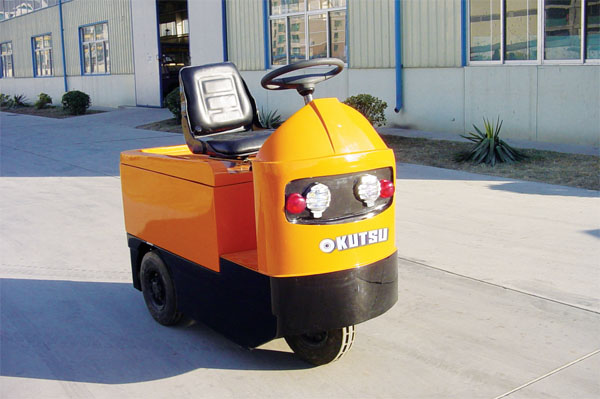

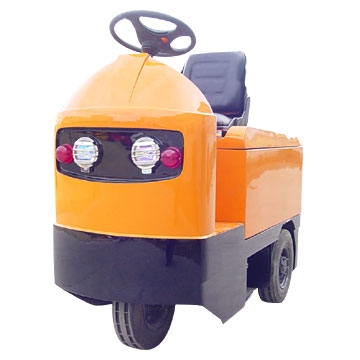

Product Picture
| Model | BL-QDD2 | BL-QDD5 | BL-QDD10 | BL-QSD10 |
| Operating Type | 3-Fulcrums, Back Drive, Hydraulic Brake, MOFSET, Hand Brake) | |||
| Rated Tow Power N | 1250N | 1700N | 2500N | 2500N |
| Drawbar Pull KG | 2300 | 5000 | 10000 | 10000 |
| Driving Speed KM/H | 8 | 8 | 8 | 12 |
| Turning Radius (outside) MM | 1350 | 1650 | 1880 | 1880 |
| Gradeability %xM | 10%×12m | 10%×12m | 10%×12m | 10%×12m |
| Motor Model | XQ-3-3B | XQ-4.5-2 | XQ-6.3 | XQ-6.3 |
| Rated Power KW | 3 | 4.5 | 6.3 | 6.3 |
| Rated Voltage V | 45 | 45 | 45 | 45 |
| Rated Current A | 87 | 120 | 173 | 173 |
| Rated Rotate Speed EPM | 1780 | 1780 | 1200 | 1200 |
| Overall Size LxWxH MM | 1684x677x1340 | 1755x900x1380 | 2200x1100x1590 | 2200x1100x1590 |
| Wheel Base MM | 970 | 1040 | 1300 | 1250 |
| Ground Clearance MM | 60 | 60 | 105 | 105 |
| Front Wheel | 4.00-8/×1 | 4.00-8/×1 | 4.00-8/×2 | 5.00-8/×2 |
| Rear Wheel | 4.00-8/×2 | 4.00-8/×2 | 6.00-9/×2 | 6.50-10/×2 |
2、hydraulic disc brakes and heavy duty construction,
3，Guarantee a more rugged, more efficient, and more easily maintained electric powered tow tractor.
