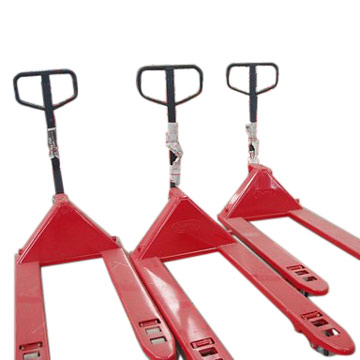

NPL NPSL pallet truck
-
![]()
Shanghai Beili Machinery Manufacturing Co., Ltd.
普通商家 - Mode：Forklift Truck Manufacturer
- Area：ChinaShanghai
- Address：19 Hangsheng Road,Hangtou Damaiwang Industry Park,Nanhui, Shanghai, P.R.China
- All Products Enter Shop
Description
Parameters
Product Picture
| 1, Standard | ||||||||
| Model | Capacity | Forkwidth | Forklength | Min. Height | Max. Height | Steer wheel | Load Wheel | Weight |
| (kg) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | |
| NP10-48 | 1000 | 460 | 810 | 80 | 200 | 180*62 | 78*100 (single) | 66 |
| NP10-49 | 460 | 980 | 70 | |||||
| NP10-58 | 520 | 810 | 66 | |||||
| NP10-59 | 520 | 980 | 70 | |||||
| NP10-510 | 520 | 1070 | 71 | |||||
| NP10-511 | 520 | 1150 | 73 | |||||
| NP10-712 | 685 | 1220 | 79 | |||||
| NP15-48 | 1500 | 460 | 810 | 80 | 200 | 180*62 | 78*100 (single) | 66 |
| NP15-49 | 460 | 980 | 70 | |||||
| NP15-58 | 520 | 810 | 66 | |||||
| NP15-59 | 520 | 980 | 70 | |||||
| NP15-510 | 520 | 1070 | 71 | |||||
| NP15-511 | 520 | 1150 | 73 | |||||
| NP15-610 | 600 | 1070 | 77 | |||||
| NP15-76 | 685 | 650 | 68 | |||||
| NP15-710 | 685 | 1070 | 76 | |||||
| NP15-712 | 685 | 1220 | 79 | |||||
| NP25-58 | 2500 | 520 | 810 | 80 | 200 | 180*62 | 78*100 (single) or 78*70 (tandem) | 67 |
| NP25-59 | 685 | 980 | 71 | |||||
| NP25-510 | 685 | 1070 | 72 | |||||
| NP25-511 | 520 | 1150 | 75 | |||||
| NP25-712 | 685 | 1220 | 80 | |||||
| NP30-510 | 3000 | 520 | 1070 | 80 | 200 | 180*62 | 78*100 (single) or 78*70 (tandem) | 84 |
| NP30-511 | 520 | 1150 | 90 | |||||
| NP30-712 | 685 | 1220 | 100 | |||||
| 2, Low Profile | ||||||||
| Model | Capacity | Forkwidth | Forklength | Min. Height | Max. Height | Steer wheel | Load Wheel | Weight |
| (kg) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | |
| NPL15-58 | 1500 | 520 | 820 | 65 | 165 | φ180*62 | φ65*100 (single) | 66 |
| NPL15-59 | 520 | 990 | 70 | |||||
| NPL15-510 | 520 | 1080 | 71 | |||||
| NPL15-511 | 520 | 1160 | 73 | |||||
| NPL15-712 | 685 | 1230 | 79 | |||||
| NPL25-58 | 2500 | 520 | 820 | 65 (75) | 165(185) | φ180*62 | φ65*100 (single) | 67 |
| NPL25-59 | 520 | 990 | 71 | |||||
| NPL25-510 | 520 | 1080 | 72 | |||||
| NPL25-511 | 520 | 1150 | 73 | |||||
| NPL25-712 | 685 | 1230 | 80 | |||||
l The low profile hand pallet truck with a low clearance has been developed for handling products like low line crates that only counterbalanced forklifts can move；
l 1T Cap. Lowered fork height is 35mm; 2T Cap. lowered fork height is 51mm
l Tandem steel wheel to be used.
