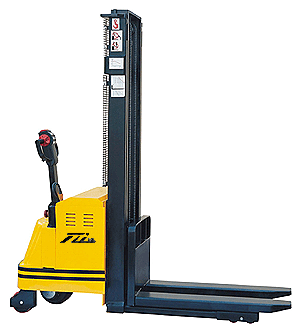

Taiguan Full Electric Stacker Fixed Fork Type
Brand：TAIGUAN
Description
Parameters
Product Picture
|
型号 |
|
TLH10/25 |
TLH10/35 |
TLH15/25 |
TLH15/35 |
TLH20/25 |
|
额定载重(Q) |
Kg |
1000 |
1500 |
2000 |
|
中心距 (C ) |
mm |
500 |
|
提升高度 (h3) |
mm |
2500 |
3500 |
3500 |
2500 |
2500 |
|
最高尺寸 (h4) |
mm |
2975 |
3975 |
2975 |
3975 |
3095 |
|
手柄高度 (h2) |
mm |
1385~1405 |
|
货叉长度 (L) |
mm |
1120 |
|
货叉宽度 (E) |
mm |
570 |
590 |
|
转弯半径 (Wa) |
N° |
1668 |
1768 |
|
轮子 (Y) |
|
1288 |
1388 |
|
移动速度 |
Km/h |
4/4.5 |
5/6 |
|
蓄电池 |
V/Ah |
24/210~250 |
|
充电器 |
V/Ah |
24/40 |
|
行走马达 |
Kw |
0.9~1 |
1.2~1.3 |
|
提升马达 |
kw |
2.2~3 |
|
总长 (L) |
mm |
2040 |
|
总宽 (W) |
mm |
852 |
|
总高 (h1) |
mm |
1770 |
2270 |
1770 |
2270 |
1890 |
|
自重 |
Kg |
858 |
900 |
888 |
930 |
988 |
|
MODEL |
|
CTL10-Ⅱ |
CTL15-Ⅱ |
CTL20-Ⅱ |
CTL10-Ⅱ |
CTL15-Ⅱ |
CTL20-Ⅱ |
CTL1545 |
CTL1553 |
CTL1545 |
CTL1553 |
|
Capacity |
(Kg) |
1000 |
1500 |
2000 |
1000 |
1500 |
2000 |
1500 |
1500 |
1500 |
1500 |
|
Centre of gravity |
(mm) |
500 |
500 |
500 |
500 |
500 |
500 |
600 |
600 |
600 |
600 |
|
Max life height(H1) |
(mm) |
1600/2500/3000/3300/3500 |
1600/2500/3000 |
4500 |
5300 |
4500 |
5300 |
|
Lift speed with load |
(m/s) |
0.06 |
0.05 |
0.05 |
0.06 |
0.05 |
0.05 |
0.12 |
0.12 |
0.12 |
0.12 |
|
Travel speed with load |
(km/h) |
4.5 |
4 |
4 |
4.5 |
4 |
4 |
4.5 |
4.5 |
4.5 |
4.5 |
|
Travel speed without load |
(km/h) |
5.6 |
5.6 |
5.6 |
5.6 |
5.6 |
5.6 |
5.6 |
5.6 |
5.6 |
5.6 |
|
Gradient |
(%×m) |
6%×12m |
5%×12m |
5%×12m |
6%×12m |
5%×12m |
5%×12m |
6%×12m |
6%×12m |
6%×12m |
6%×12m |
|
Turning radius(R) |
(mm) |
1750 |
1750 |
1750 |
1700 |
1700 |
1700 |
1629 |
1629 |
1629 |
1629 |
|
Wheel distance(D) |
(mm) |
1470 |
1470 |
1470 |
1390 |
1390 |
1390 |
1255 |
1255 |
1255 |
1255 |
|
Fork length(N) |
(mm) |
1070 |
1070 |
1070 |
1070 |
1150 |
1150 |
1070 |
1070 |
1150 |
1150 |
|
Overall size(A) |
(mm) |
200-800 |
200-800 |
200-800 |
580-659 |
580-659 |
580-659 |
240-800 |
240-800 |
695 |
695 |
|
(C) |
|
100 |
100 |
100 |
170 |
170 |
170 |
120 |
120 |
170 |
170 |
|
(L) |
(mm) |
2020 |
2020 |
2020 |
2100 |
2100 |
2100 |
1955 |
1955 |
1955 |
1955 |
|
(H2) |
(mm) |
2090/1840/2090/2240/2340 |
2090/1840/2090 |
2060 |
2310 |
2100 |
2350 |
|
(H3) |
(mm) |
|
|
|
|
|
|
5028 |
5778 |
5070 |
5820 |
|
Net weight |
(Kg) |
685 |
710 |
730 |
685 |
710 |
730 |
935 |
975 |
915 |
955 |
|
Drive wheel |
(mm) |
Ф250×80 |
Ф250×80 |
Ф250×80 |
Ф250×80 |
Ф250×80 |
Ф250×80 |
Ф250×80 |
Ф250×80 |
Ф250×80 |
Ф250×80 |
|
Fork wheel |
(mm) |
Ф98×80 |
Ф98×80 |
Ф98×80 |
Ф80×70 |
Ф80×70 |
Ф80×70 |
Ф98×80 |
Ф98×80 |
Ф80×70 |
Ф80×70 |
|
Battery capacity |
(AH) |
210/240 |
275 |
275 |
275 |
275 |
|
Battery voltage |
(V) |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
|
Drive motor power |
(KW) |
0.75 |
1.2 |
1.2 |
0.75 |
1.2 |
1.2 |
0.9 |
0.9 |
0.9 |
0.9 |
|
Lift motor power |
(KW) |
2.2 |
2.2 |
3.0 |
2.2 |
2.2 |
3.0 |
3.0 |
3.0 |
3.0 |
3.0 |
|
Type of controller |
|
Mosfet controller | |
