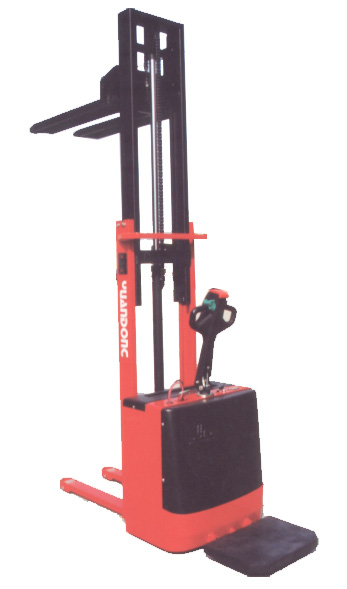

Yuandong 1.5T Electric Pallet Stacker CDD1.5A
Brand：YUANDONG
-
![]()
Wuxi Fareast Transportation Machine Co., Ltd.
普通商家 - Mode：Forklift Truck Manufacturer
- Area：China
- Address：No. 292, Hubin Road, Wuxi, Jiangsu, China
- All Products Enter Shop
Description
Parameters
Product Picture
CDD-A全电动托盘堆垛车，体积小，重量轻，操作灵活简易，不污染环境，并能适应通道狭隘，进入电梯及楼面使用。适用于各类车间、仓库、码头、商店、宾馆等货物的堆垛及搬运、装卸。
|
型号 Model |
单位 Uniss |
CDD1.5A | ||
|
额定起重量 Rated lifting capacity |
Kg |
Q |
1500 | |
|
载荷中心距 Load centre |
mm |
C |
400 | |
|
最大起升高度 Max.lifting height |
mm |
H |
1500/2500 | |
|
起升速度 （空载/满载） Max.lifting speed (empty/laden) |
mm/s |
100/80 | ||
|
最小转弯半径 Min.outside turming radias |
mm |
R |
1350 | |
|
行驶速度 Travel speed |
km/h |
0-5.5 | ||
|
作业时最大高度 Max.operation height |
mm |
A |
2050/2600 | |
|
外型 尺寸 Overall dimension |
长Length |
mm |
L |
1550 |
|
宽Width |
mm |
W |
850 | |
|
高Height |
mm |
H |
1350/1800 | |
|
货叉长度Fork length |
mm |
L |
800 | |
|
货叉内宽 Interdistance between forks |
mm |
E |
220/320 | |
|
货叉外宽 Opening of forks |
mm |
D |
580/680 | |
|
货叉最低位高度Min.height of fork |
mm |
H |
| |
