OPK 1T Pedestrian Electric Pallet Truck CPHR-10S-A
Brand：OPK
-
![]()
Shanghai OPK Transportation Machinery & Equipment Co., Ltd.
VIP商家 - Mode：Forklift Truck Manufacturer
- Area：ChinaShanghai
- Address：No.206, Xinzhu Road, Minhang, Shanghai, China
- All Products Enter Shop
Description
Parameters
Product Picture
| [所属商品分类] | 电动 |
| [名称] | CPHR-10S-A |
| [产品编号] | CPHR |
| [最大载重量] | 1000 kg |

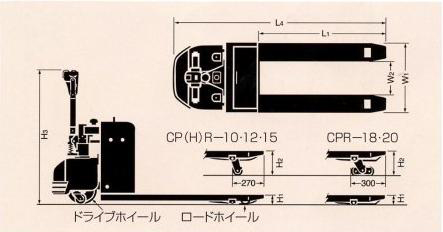

| [最底位] | H1=80 mm |
| [最高位] | H2=200 mm |
| [(叉子尺寸)叉外幅] | W1=580 mm |
| [(叉子尺寸)叉内幅] | W2=280 mm |
| [(叉子尺寸)叉长1] | L1=1070 mm |
| [全长] | L4=1755 mm |
| [全高] | H3=1130 mm |
| [最小旋转半径] | 1715 mm |
| [(移动速度)无负荷] | H3.5/L3.0 km/h |
| [(移动速度)负荷] | H2.5/L2.0 km/h |
| [前轮(直径*厚度)] | 80*73 ф*mm |
| [后轮(直径*厚度)] | 240*60 ф*mm |
| [负荷时爬坡度] | 5 % |
| [自重] | 205 kg |
| [蓄电池] | DC12V/50AH/5HR |
| [充电器] | 搭载式 |
| [刹车类型] | 电磁式 |
| [所属类型] | 电动 |
