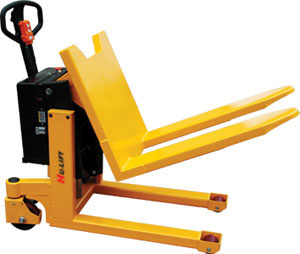

Pallet Tilter LT10M (Manual) LT10E(Electric)
Brand:HU-LIFT
-
Hu-Lift Equipment Co., Ltd.
普通商家 - Mode:Forklift Truck Manufacturer
- Area:ChinaJiangsu
- Address:Yunlin Rd, Foreign Investment Park, Xishan Economic Development Zone, Wuxi, Jiangsu, China
- All Products Enter Shop
Description
Parameters
Product Picture
|
Manual and Electric Version | ||
|
Hu-lift pallet titler lifts, tilts and transports crates/boxes on pallets.
Designed to give the user an ergonomically correct position to reach loads easily without the necessity of bending down or stretching up.
Handle can be turned and loacked in po sition away from the work area.
Applies to both sitting and standing positions.
Forks can be tilted up to 90¡ã.
Both are supplied as standard with parking brake and foot protectors.
Manual type:lift and tilt are by hand hydraulic action.
Electric type:lifting and lowering function built into the handle and the tilt action is operated by remote control. This allows the user to adjust the tilt during filling or emptying crate or box. |
| Model |
LT10M (Manual) |
LT10E(Electric) | |
| Capacity (kg) |
1000 |
1000 | |
| h | Lifting Height,Vertical (mm) |
285 |
285 |
| h1 | Min.Fork Height (mm) |
85 |
85 |
| l | Fork Length (mm) |
800 |
800 |
| l1 | Handle Height (mm) |
1138 |
200 1138 |
| b | Overall Fork Width (mm) |
560 |
560 |
| b1 | Width Berween Forks (mm) |
234 |
234 |
| l2 | Fork Tip Length From Roller (mm) |
135 |
135 |
| b | Overall Width (mm) |
638 |
638 |
| l | Overall Length (mm) |
1325 |
1410 |
| h | Overall Height,Raised (mm) |
950 |
950 |
| h | Overall Height,Lowered |
750 |
750 |
| c1 | Load Centre |
Min.200mm,Max.400mm | |
| c2 | Load Centre |
Min.200mm,Max.420mm | |
| Power Uint |
0.8kw/12v | ||
| Net Weight (kg) |
178kg |
185kg | |
| Minimum Qty. (pcs) |
4 |
2 | |



sition away from the work area.
Applies to both sitting and standing positions.
Forks can be tilted up to 90¡ã.
Both are supplied as standard with parking brake and foot protectors.
Manual type:lift and tilt are by hand hydraulic action.
Electric type:lifting and lowering function built into the handle and the tilt action is operated by remote control. This allows the user to adjust the tilt during filling or emptying crate or box.
