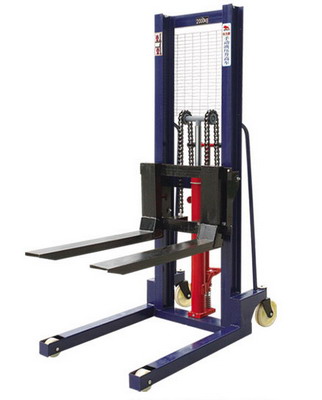

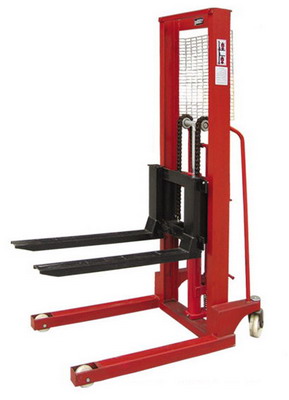

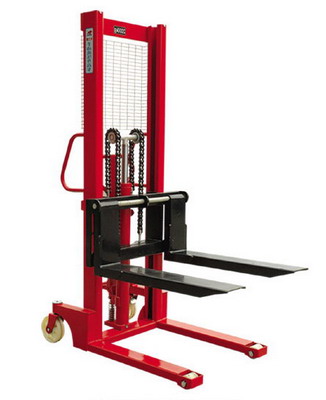

Niuli CTY Hand Stacker

普通商家

Parameters	Model
	CTY-A(Light frame)			CTY-D(Weight frame)		CTY-E("C" frame)
	A1.0	A2.0	A3.0	D1.0	D2.0	E1.0	E2.0
Rated lifting Capacity(Kg)	1000	2000	3000	1000	2000	1000	2000
Max lifting height(mm)	1600	1600	1600	1600	1600	1600	1600
Height of forks lower(G)(mm)	100	100	100	85	85	85	85
Fork length(E)(mm)	900	900	1000	900	900	900	900
Adjustable width of the forks(J)（mm)	200-560	240-680	280-740	200-560	240-740	320-740	320-740
Lifting speed(mm/stroke)	20	14	10	20	14	20	14
Lowering speed	controllable
Operations power of hand crank(kg)	24	32	40	24	32	24	32
Outer width of front leg(M)(mm)	710	740	750	790	830	690	690
Minimum refuel volume for fuel tank(L)	1.6	2.0	3.0	3.0	2.0	1.5	2.0
Front wheel size(mm)	100х50	100х50	100х50	80х70	80х93	75х52	75х70
Rear wheel size(mm)	180х50	180х50	180х50	180х50	180х50	180х50	180х50
Overall size(DхCхB)(mm)	2050х730х1380	2050х740х1650	2050х740х1380	2050х780х1650	2030х830х1500	2030х780х1450	2040х780х1470
Self weight(kg)	115	180	280	160	260	150	250
