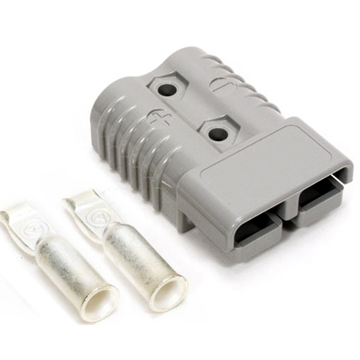

Name：Power Connector
Amperage：175A
Voltage：2200V
Pole：2
Contact Barrel Wire Size：6AWG，4AWG，2AWG，1AWG，1/0AWG

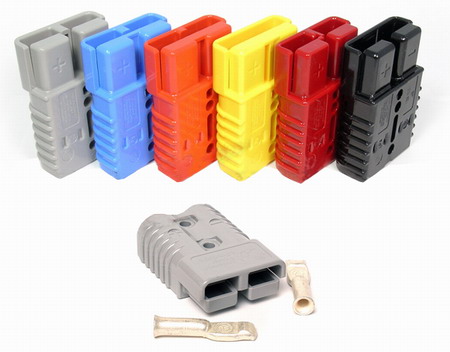

Colors：Gray,Blue,Red,Yellow,Black,Green etc.
Housing Material：UL94 V-0
Contact Material:Silver-Plated Copper
Spring Material：Stainless Steel
Feature：1. Each color will mate only with another connector of the same color and size. 2.All are suitable for AC or DC SBup to 600 volts. 3.Spring loaded silver plated, contoured contacts have a self-wiping cleaning action, which ensures greater conductivity and longer life. Applications:The 175 and 350 amp units are used for larger batteries and large arrays. They may also be used for inverter connections. Rated for AC and DC, up to 600 volts.
Standards and Certifications:UL
