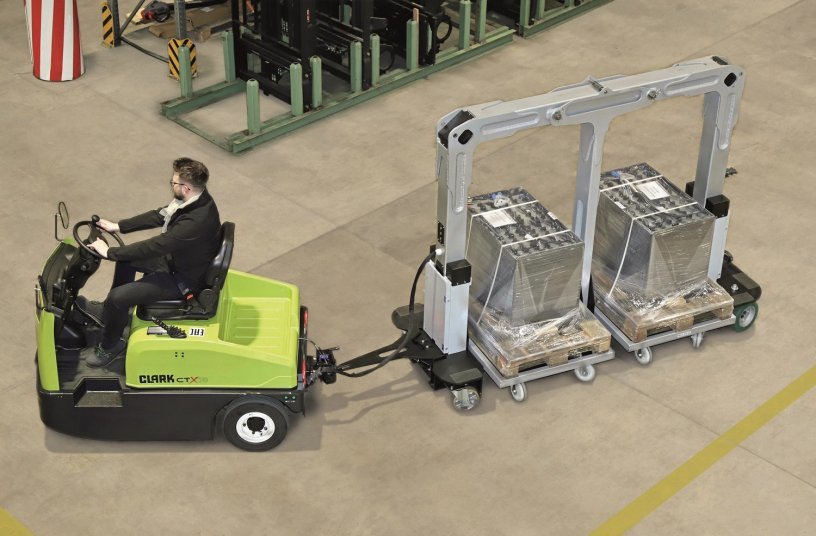

The CTR02 Double U-Frame trailer can accommodate two Euro pallets, each with a load weight of 800 kg, as well as other types of pallets commonly used in the industry
Tugger trains and a synchronized material supply are an important component of value-added and customer-oriented production logistics – this has long been recognized by the automotive industry. For this reason, Clark has launched a tugger train system that specifically addresses the specific requirements of industrial customers. With the Clark tugger train, material transports over longer distances can be organized efficiently, safely and extremely flexibly.

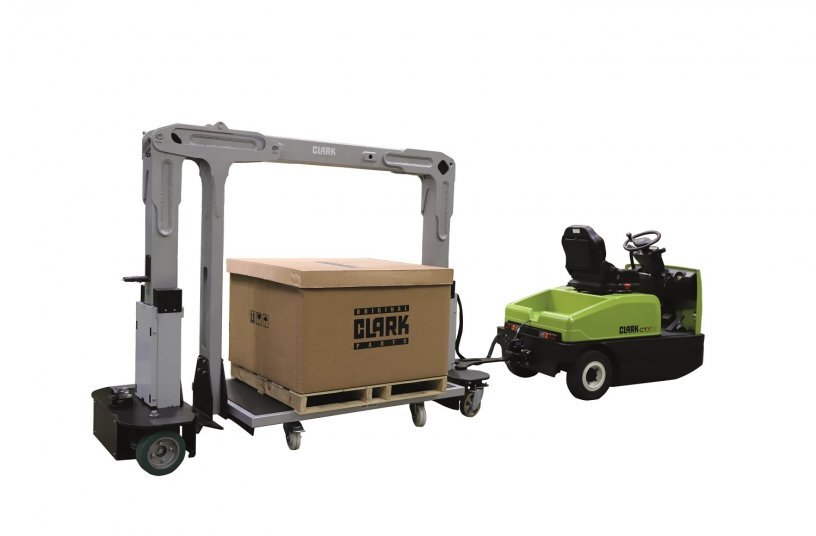

The Clark tugger train is available as an all-in-one solution. It consists of the Clark CTX40-70 towing tractor with a towing capacity of 4 or 7 t and the CTR01 and CTR02 trailers. The CTR01 trailer, designed as a single U-frame, is built for customers who mainly have to transport Euro pallets. It can accommodate a mobile trolley on which Euro pallets (1200 x 800 mm) with a maximum load capacity of 1200 kg can be transported.
The CTR02 Double U-Frame trailer can accommodate both Euro pallets and other types of pallets commonly used in industry. Via a sliding inner carrier, the operator can flexibly choose between a trolley measuring 1600 x 1000 mm with a load capacity of up to 1600 kg or two trolleys for transporting Euro pallets with a load weight of 800 kg each.

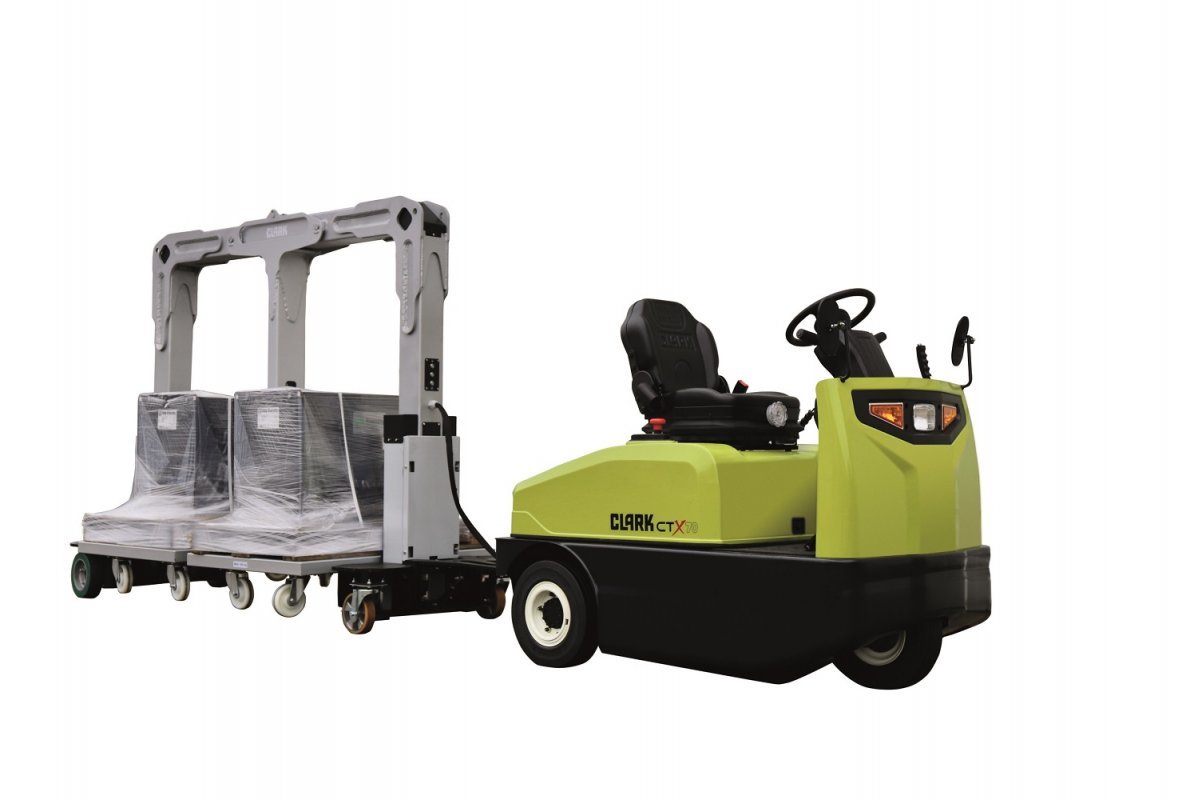

The operator can flexibly choose between a trolley with a size of 1600 x 1000 mm and a payload of up to 1600 kg via a sliding inner carrier on the CTR02
Loading from both sides without great effort
The Clark trailers allow ergonomic loading from both sides up to a total height of 1400 mm per trolley. No matter from which side, the operator can push the smooth-running trolleys into the lifting system of the frame without much effort, which then automatically locks into place. Another advantage is that the operator can walk through the frame to get to the other side of the trailer. The trailer's electric lift system requires little maintenance and has a lift height of 60 mm. A latching mechanism ensures that the trolleys are securely fixed in the frame. An immobilizer prevents the tugger train from starting up when the lift is lowered.
For coupling and uncoupling the trailers, a coupling with remote release is available in addition to the standard trailer coupling without remote release. This has the advantage that the tractors can automatically couple and uncouple additional trailers: The towing tractor can, for example, after delivering materials to the destination, uncouple the trailers and automatically couple empty trailers waiting there for the next "milk-run". The tugger train can thus be flexibly integrated into other production processes.
Small traffic area: With the help of the electrically steered wheels in the rear axle module, perfect tracking of the Clark tugger train is guaranteed: One trailer follows the other exactly in one lane both on a straight track and when cornering
