STILL: Compact High Lift Stacker for Goods Received and Warehouse

2008-12-18 09:36 Kind:转载 Author:STILL Source:STILL
Statement:尊重合法版权,反对侵权盗版,若本网有部分文字、摄影作品等侵害了您的权益,在此深表歉意,请您立即将侵权链接及侵权信息邮件至我们的版权投诉邮箱:marketing@forkliftnet.com,我们会尽快与您联系并解决,谢谢您的配合.
The successful EXV high lift stacker series from STILL is extended by two additional models. Beside the agile EX...

The successful EXV high lift stacker series from STILL is extended by two additional models. Beside the agile EXV 10 Basic (single mast) with a load capacity of 1000 kg the EXV 12i with initial lift and a load capacity of 1200 kg is available for tough operation crossing slopes and ramps.



The EXV series with its modern and functional design is best suitable for operation at service providers, retailers and in industrial operations. The new models increase turnover performance when stacking in narrow areas or when order picking, e.g. in the goods reception, in the production or in the warehouse. All EXV have a capsulated three-phase (AC) drive for operation in dusty or humid environments.



The initial lift of the EXV 12 i increases the floor clearance to 150 mm and allows to operate the EXV easily on loading ramps or on bumpy floors. The EXV 12 i has the highest lift and lowering speed of its class providing best productivity.



The Eco-mode saves energy and allows safe transport of fragile goods (glass, fruit, vegetables).



Warehouse workers can use the EXV as a lift platform. When order picking or repacking palleted goods they can easily adjust the platform to the ergonomically correct working height.



The buttons on the tiller are arranged symmetrically the fibreglass-enforced polyamide tiller head and are easy to reach. Right-handed and left-handed operators alike can lift and lower the forks sensitively. To increase safety the maximum drive speed depends on the tiller angle (OPTISPEED 3.0). The steeper the position of the tiller, the slower the stacker will move. When the drive switch is released the EXV stops and set the brakes automatically on slopes and can move-on without rolling back.



The sturdy and stabile mast of the EXV 12 i lifts the nominal load up to 2600 mm. The range of telescopic, HiLo and triplex masts provides 10 different closed mast heights. The hydraulic cylinders are integrated in the mast profile for higher safety. The operator has a good visibility of the load. The residual capacities are high: the load can be lifted up to 4386 mm. The lowering dampening of all the masts helps to handle the goods carefully. The connection of the fork with the fork carriage was reinforced.



The EXV offers maximum comfort and facilitates work, for example with its standard storage compartments for tools and documents, bottles and pens. A diagnostic interface and the direct access to all components allow quick servicing.



Altogether the new EXVs are silent, agile, safe and sound.



On demand additional options such as onboard chargers, access control by PIN code, STILL FleetManager or a cold store version (up to –30°C) are available.


STILL High Lift Stacker EXV 12 i in warehouse application



STILL High Lift Stacker EXV 12 i with initial lift

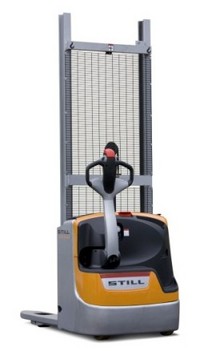

STILL High Lift Stacker EXV 10 Basic
