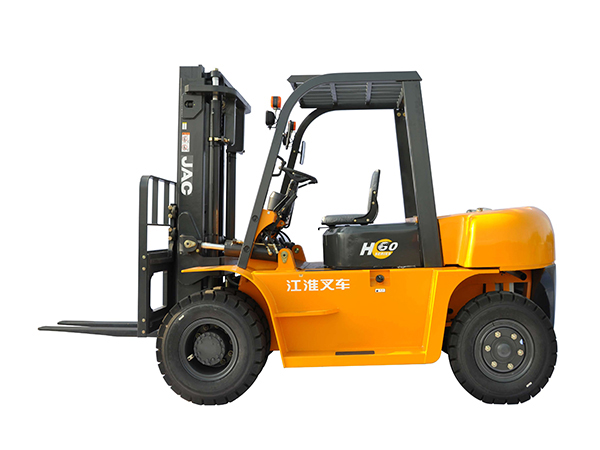

| 6T Internal Combustion Counterbalance Forklift Truck | ||||
| CPCD60H | ||||
| Features | Powe type | 柴油Diesel | ||
| Rated load | kg | 6000 | ||
| Load center distance | mm | 600 | ||
| Lift height | mm | 3000 | ||
| Free lift height | mm | 160 | ||
| Fork size | L×W×T | mm | 1220×150×60 | |
| Mast tilt angle | FR/RR | 。 | 6/12 | |
| Minimum turning radius | mm | 3300 | ||
| Minimum right angle stacking aisle width | mm | #REF! | ||
| Minimum right angle aisle width | mm | 2960 | ||
| Minimum ground clearance | Frame center(no load) | mm | 220 | |
| Mast Bottom（no load） | mm | 205 | ||
| Height of overhead guard | mm | 2500 | ||
| Performance | Maximum travel speed | Full load | km/h | 24 |
| No load | km/h | 25 | ||
| Maximum lift speed | Full load | mm/s | 460 | |
| No load | mm/s | 500 | ||
| Maximum drawbar pull | Full load | KN | 53 | |
| Maximum gradeability | % | 28 | ||
| Dimensions | Overall length | Without forks | mm | 3470 |
| Overall width | mm | 2075 | ||
| Mast lowered height | mm | 2510 | ||
