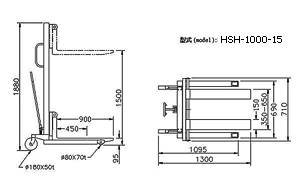

| Specifications 尺寸規格表 | ||
|---|---|---|
|
Model |
型式 |
HSH-1000-15 |
|
Loading capacity |
荷重能力 |
1000KG |
|
Loading center |
荷重中心 |
450mm |
|
Lifting height |
揚昇高度 |
1500mm |
|
Lowered forks height |
貨叉最低高度 |
95mm |
|
Fork length |
貨叉長度 |
900mm |
|
Overall forks width |
貨叉最大外寬 |
350- 650mm |
|
Overall length |
機台全長 |
1300mm |
|
Overall height (min) |
機台全高 |
1880mm |
|
Overall width |
機台全寬 |
710mm |
|
Turning radius |
迴轉半徑 |
1200mm |
|
Front wheel |
前輪輪徑 |
Ø80*70 |
|
Rear wheel |
後輪輪徑 |
Ø180*50 |
|
Weight |
機台重量 |
180KG |
