OPK 0.5T Two-section-lift Pedestrian Full Electric Stacker PL-SW500-25

OPK 0.5T Two-section-lift Pedestrian Full Electric Stacker PL-SW500-25

OPK 0.5T Two-section-lift Pedestrian Full Electric Stacker PL-SW500-25

Brand：OPK
Minimum Amount：1
Total Supply：
Delivery Period：
Valid Until：Validity
Update Time：2007-12-12 11:15
Inquire Now

Add to Favorite

VIP商家

Shanghai OPK Transportation Machinery & Equipment Co., Ltd.
Mode：Forklift Truck Manufacturer
Area：ChinaShanghai
Tel：0086-21-64601077
邮箱：chykyou@opk.co.jp
Address：No.206, Xinzhu Road, Minhang, Shanghai, China
Enter Shop

Contact Now
分享到：

Hot Recommend

Company Product

Description

Parameters

Product Picture

[所属商品分类]	两段升降式
[名称]	PL-SW500-25
[产品编号]	PL
[最大载重量]	500　kg

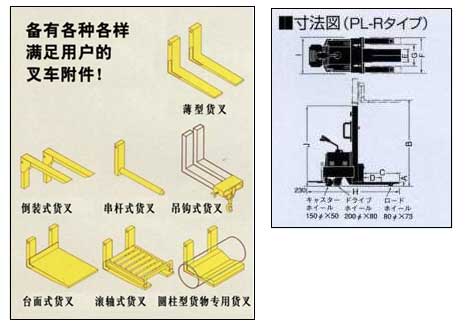

[最底位]	A=80(95)　mm
[最高位]	B=2500　mm
[叉的最大滑动距离]	E=270-775　mm
[叉的负荷中心]	D=350　mm
[叉长]	C=650　mm
[全长]	H=1495　mm
[全高]	J=1830　mm
[全幅]	I=804　mm
[脚外幅]	F=750　mm
[脚内幅]	G=550　mm
[最小旋转半径]	1400　mm
[(移动速度)无负荷]	H2.9/L2.4　km/h
[(移动速度)负荷]	H2.4/L1.9　km/h
[上升时间]	10-15　秒
[自重]	387　kg
[马达]	DC12V/0.25KW/1.8KW
[蓄电池]	DC12V/120AH/5HR
[刹车类型]	电磁式
[所属类型]	电动行走
