OPK 0.35T Pedestrian Full Electric Stacker PL-U350-15

OPK 0.35T Pedestrian Full Electric Stacker PL-U350-15

OPK 0.35T Pedestrian Full Electric Stacker PL-U350-15

Brand：OPK
Minimum Amount：1
Total Supply：
Delivery Period：
Valid Until：Validity
Update Time：2007-12-12 10:27
Inquire Now

Add to Favorite

VIP商家

Shanghai OPK Transportation Machinery & Equipment Co., Ltd.
Mode：Forklift Truck Manufacturer
Area：ChinaShanghai
Tel：0086-21-64601077
邮箱：chykyou@opk.co.jp
Address：No.206, Xinzhu Road, Minhang, Shanghai, China
Enter Shop

Contact Now
分享到：

Hot Recommend

Company Product

Description

Parameters

Product Picture

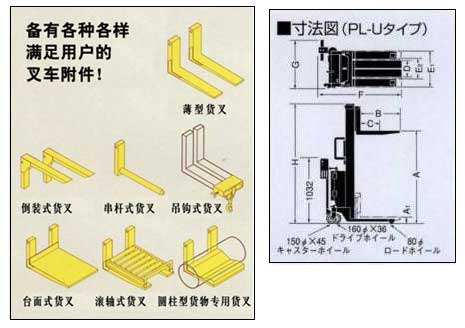

[所属商品分类]	电动行走
[名称]	PL-U350-15
[产品编号]	PL
[最大载重量]	350　kg
[最底位]	A1=80(95)　mm
[最高位]	A=1500　mm
[叉的最大滑动距离]	D=165-530　mm
[叉的负荷中心]	C=350　mm
[叉长]	B=650　mm
[全长]	F=1250　mm
[全高]	H=1900　mm
[全幅]	G=745　mm
[脚外幅]	E1=508　mm
[脚内幅]	E2=392　mm
[最小旋转半径]	1100　mm
[(移动速度)无负荷]	H2.4/L2.0　km/h
[(移动速度)负荷]	H2.2/L1.8　km/h
[上升时间]	9-13　秒
[自重]	168　kg
[蓄电池]	DC12V/80AH/5HR
[刹车类型]	电气式
[所属类型]	电动行走
