What and Who Makes the Difference into Stainless Steel Material Handling Equipment

2021-06-11 10:57 Kind:转载 Author:BADA Source:BADA
Statement:尊重合法版权,反对侵权盗版,若本网有部分文字、摄影作品等侵害了您的权益,在此深表歉意,请您立即将侵权链接及侵权信息邮件至我们的版权投诉邮箱:marketing@forkliftnet.com,我们会尽快与您联系并解决,谢谢您的配合.
Bada Carrelli is a high-quality brand operating in the food and clean room markets for over 30 years. The manufacturing process i...

Bada Carrelli is a high-quality brand operating in the food and clean room markets for over 30 years. The manufacturing process is mainly focused in the design and production of fully stainless steel lift trucks (hand pallet trucks, low-lift pallet trucks and stackers) able to work in environments where the cleaning and hygiene are the most required values and where there are serious problems of corrosion related to the use of acids and saline solutions.

The Bada 16T & 20T with their load capacity of 1.6 & 2.0 tons can perfectly respond to these requirements being projected to withstand regular high-pressure cleaning and disinfection.

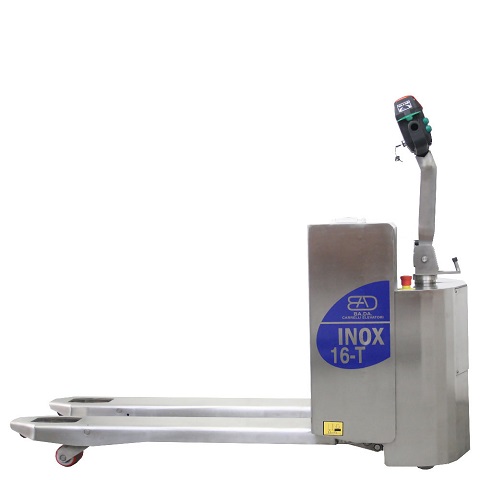

Bada mod. 16T

Pedestrian low lift pallet truck - capacity 1.6 tons

Ideal for horizontal handling in narrow warehouses thanks to its compact dimensions (chassis length of just 548mm), it's ideally suited to be used in the food and clean rooms handling.

The high-quality stainless steel (available in AISI316 on demand) offers an abrasion-resistant and smooth surface even with intensive use, avoiding dirt deposits and the spread of germs and bacteria.

All the electric components are waterproof and corrosion resistant. The standard execution allows to work in -20° cold store areas (cold storage) and the use of the certified hydraulic oil food grade NSF H1 offers a full protection in case of a random contact with the aliments.

The reliable sensorless three phase current traction drive motor in AC execution is able to meet the most demanding performance requirements, delivering the necessary power under all load conditions: indeed, the traction speed can depend on the position of the drive throttle.

The unit is equipped with anti-rollback devices, the control checks all the unit functions and allow many adjustments to optimise the unit performances, adapting it to the type of work applications it has to carry out.

All the parameters related to drive and electric braking are electronically adjustable by a programming console in accordance with the customers' requirements.

The antislip no-marking polyurethane traction wheel (rough wheel available as option) grants high stability in every work situation and the stabilizer adjustable support wheels always allow constant grip to the floor.

The pallet truck is equipped with 3 braking systems:

braking on reversal of travel direction (service braking)

emergency braking that automatically occurs on release or extreme lowering of the steering handle

parking brake with steering handle in the vertical position.

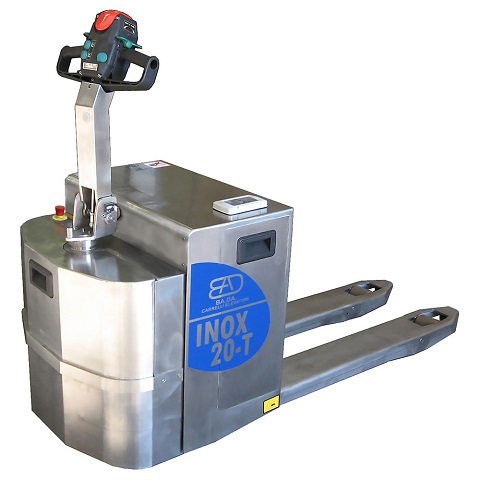

Bada mod. 20T

Pedestrian low lift pallet truck - capacity 2.0 tons

Compact and manoeuvrable stainless steel electric pedestrian pallet truck, ideal for loading and unloading operations as well as transporting pallets up to 2.0tons capacity over short distances.

100% stainless steel AISI304 (available in AISI316 on demand), all the components such as chassis, axles, levers, etc,... are manufactured to grant the protection of the products and the resistance to corrosion in the aggressive environments.

With this specification, the pallet truck is suitable for usage in food handling, clean rooms and laboratories in the chemical industries such as pharmaceutical, biomedical, cosmetics, aeronautics and microelectronics.

All the electric components are waterproof and corrosion resistant. The standard execution allows to work in -20° cold store areas (cold storage) and the use of the hydraulic oil food grade NSF H1 certified offers a full protection in case of a random contact with foods.

Equipped with the same high-performance electric and electronic plants like the mod. 16T, the 20T assures the most reliable performance all over the whole workshift.

It can be equipped with an additional spare battery to ensure continuous operation over several shifts.

In order to make the replacement of the batteries easier, Bada Carrelli provides as an option a battery extraction roller stand (single or double) in stainless steel and equipped with wheels to facilitate handling.

Both the models 16T & 20T can be supplied with the optional package:

stainless steel AISI316

double load rollers

custom forks length less or over the standard dimensions

custom forks width and/or external forks width.
