Nowadays, the internal combustion forklifts and battery forklifts used on the market at home and abroad are generally featured with tight structure, small turning radius and narrow ground clearance, suitable for the working environment that has smooth and solid road surfaces. As for most of the plants and companies, these forklifts are good choice. However, when the working places are filled with mud or located in the special surroundings such as hills, the operation will become rather difficult.

As the manufacturing plant specialized in producing material handling equipment in Yituo Group, Yituo (Luoyang) Transportation Machinery Co., Ltd. has always followed up the development of all-terrain and off-road forklift on domestic and overseas markets, and invested greatly to joint with a world famous Italian forklift manufacture to successfully design and manufacture FLY 26 series off-road forklift. On this basis, Yituo expands the product lines and then designs FLY 20 off-road forklifts.

These two newly-designed products are devised with Xinchang 495 diesel engine and YANMAR 4TNE98 diesel engine respectively to comply with national II and III emission standards, which could meet the demands of different customers at home and abroad.

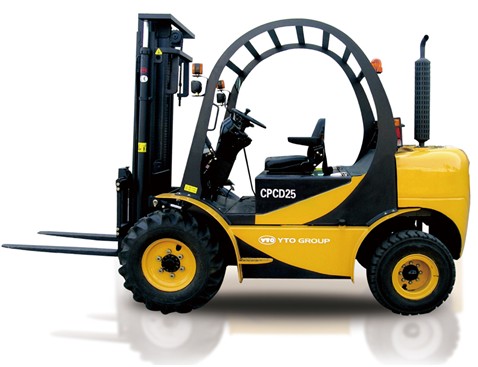

These new forklifts are large and wide in the framework, able to load irregular and big materials. With high ground clearance, the forklifts can travel over the obstacles on the working site, and also can be operated on the muddy surfaces with the four-wheeled driving system.

The new products from Yituo are suitable to be used by the industrial and mining enterprises in the field of mountains, highlands, snow area, construction sites, mining mountains, gardens, farms and other rough surfaces.

•Full Hydraulic and Flexible Steering System
The forklifts are installed with full hydraulic steering system, greatly reducing the fatigue of the operator. The steering mechanism uses horizontal cylinders, bringing reliable steering function and rigid structure.

•Digital-controlled Intelligent Operation Monitoring System
The forklifts are devised with advanced digital-controlled intelligent operation monitoring system, which enable the operators to be easily accessed to obtain the operational information of the forklift so as to realize the monitoring of the equipment during the operation.

•ASF European Frame Structure
The new off-road forklifts make use of new overhead guard designed by Italy. With the European style, the forklifts are strong in power.

•Powerful Driving Force with Great Maneuverability
FLY 26 and FLY 20 off-road forklifts uses 42 KW 495 diesel engine, and 45kW diesel engine for optional, which can offer strong power. The driving system under special design can enable the forklift to drive fast up to 23km/h.

•Satisfactory Driving
The economics design includes multi-functional steering machine, European-styled instrument and also automobile igniter. The driving seats are better designed in terms of reducing the vibration and enhancing the flexibility and safety level with installation of safety belts, side-placed operation lever.

•Drivability with Large Ground Clearance
The minimum ground clearance of the forklifts is up to 220mm, highly improving the capacity of passing and driving.

•Off-Road Driving Ability
The wheelbase and the front and rear wheel track of the new forklifts are longer and wider, and the stability of the forklifts is greatly enhanced. In the driving axle system, 11.5/80-15.3MPT multi-functional tires are installed to be more suitable to be driven on the all terrain working environment.

•Enhancement of Safety
Yituo paid more attention on the safety of the new series through the use of air filtering strip and vacuum warning device, out-board high-level exhaust silencer, protection shielding avoiding not to burn the operators’ hands, and back-up buzzer.

Yituo (Luoyang) Transportation Machinery Co., Ltd. will rely on the technological research center to provide more material handling products with high-end performance to more customers. Standing on the basis of transportation technology, Yituo aims to promote the national brand of Dongfanghong to shine in the forklift industry in the whole world.

About Yituo

Yituo (Luoyang) Transportation Machinery Co., Ltd. mainly produces Dongfanghong forklift series such as 1-25 ton diesel forklifts, heavy-duty and container-used forklifts, 1-3 battery forklifts and etc.

The products have been exported to more than 20 countries such as UK, France, Netherland, Switzerland, Greece, Pakistan, Vietnam, and Turkey.
