The acclaimed Cingo tracked carrier series continues to develop, with new variants to be seen for the first time at Bauma 2010. The new Cingo M 12.2 adds a higher, 1200 kg, payload to the top end of the range, offering new application opportunities.

The Cingo 2 range for 2010 comprises eleven basic models, with load capacities ranging from 600 to 1,200 kg, powered by either diesel or petrol engines delivering from 5 to 21 HP. Like all the other models of the range, the new M 12.2 - to be launched at Bauma 2010 - is equipped with the exclusive, patented attachment quick-coupling system, which allows various attachments to be interchanged on the carrier in only a few moments, immediately changing the machine’s function.

The robust tracked base carrier is equipped with two strong carrier arms which allow a diverse range of equipment to be quickly interchanged – amongst them dumper skips, excavators, drills, brush cutters, concrete mixers, telescopic handlers, access platforms, and many, many more.

All the models of the range are equipped with a hydrostatic transmission and hydraulic motors with integral brakes on both tracks. These machines are designed to be easy to drive; either whilst walking behind or riding on a convenient cushioned footboard.
Smooth movement, progressive control, ample power and maximum versatility- these are the major features of the Cingo system.

Cingo Handler, the tracked telehandler
The exclusive Cingo Handler system turns these machines into compact tracked telehandlers.

The core of this system is the telescopic boom, which is designed to successfully meet  the most challenging needs.

The Cingo Handler system, which is available in two versions having a maximum load capacity of 200 kg and 400 kg respectively, can be rapidly fitted on tracked carriers, thus making available a safe, easy-to-drive and extremely performing working tool.
Depending on the operations to be carried out, the telescopic boom can be equipped with a variety of interchangeable attachments. Thanks to a mechanical quick-coupling system, such attachments can be connected in just a few moments, thus turning the Cingo Handler into an excavating, hoisting, or transport system, with the added dimension of an excellent off-road mobility.

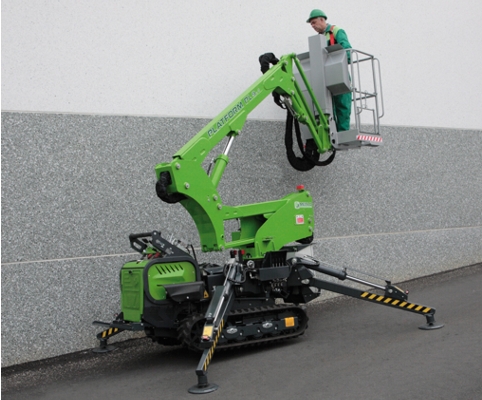

Cingo PL 9.4 personnel platform
The Cingo PL 9.4 personnel platform is the first in a range of Cingo-based systems for safe working at height. Don’t let its compact size mislead you, because its working height exceeds 9 metres and its load capacity is up to 120 kg!
It is fully dual-powered, with integral 220 V electrical controls as well as diesel or petrol motor for external use.

Only 1m wide with the four hydraulic stabilisers stowed, it will enter through narrow doorways, yet still give a very useful 9.4m of working height. The boom gives a maximum outreach of 4m and a 1m vertical lift section helps to keep the closed length of the combination down to only 3.33m!

 Cngo M 12 Plus
Payload (kg) 1200
Honda petrol engine power (HP) 20
Kubota diesel engine power (HP) 21
Maximum speed (km/h) 5,2
Transmission Hydrostatic

  Handler 400 Handler 200
Lift capacity (kg) 400 200
Lift height (m) 3,4 2,9

  Platform PL 9.4
Lift capacity (kg) 120 (1 person + 40kg)
Working height (m) 9,4
Max outreach (m)  4
Rotation (deg) ±140
Overall length (mm) 3330
Overall width (on Cingo) (mm) 1000
