New RFID Forklift System Pre-Engineers Components for Pallet Reading Add New Capabilities

2009-02-12 09:54 Kind:转载 Author:Supply Chain Digest Source:Supply Chain Digest
Statement:尊重合法版权,反对侵权盗版,若本网有部分文字、摄影作品等侵害了您的权益,在此深表歉意,请您立即将侵权链接及侵权信息邮件至我们的版权投诉邮箱:marketing@forkliftnet.com,我们会尽快与您联系并解决,谢谢您的配合.
System from M/A-COM Technology Solutions Uses Sensors to Identify when It’s Time to Read a Pallet Tag, Reducing...

System from M/A-COM Technology Solutions Uses Sensors to Identify when It’s Time to Read a Pallet Tag, Reducing Potential Errors



Microwave and RF solutions provider M/A-COM Technology Solutions recently introduced a new sensor-based RFID forklift system that can be easily add to new or existing equipment for reads of RFID pallet tags in distribution and manufacturing environments.

To date, adding RFID readers to fork trucks has been a bit of a science project, with not many truly pre-engineered solutions. This product takes that to the next level, and adds some nifty features, such as an acoustic reader that triggers a read when a pallet is put on the tines. That solves some potential challenges with using RFID for pallets.



RFID-based tracking has the potential to significantly reduce labor for fork-lift operations in a DC, though RFID has yet to make much penetration in distribution center operations.



The M/A-COM Technology Solutions product, called simply enough the RFID Forklift System, was introduced a few weeks ago at the ProMat materials handling show in Chicago. (M/A-COM Technology Solutions is a division of the UK’s Cobham plc.)



Use of RFID-based pallet identification could significantly increase fork truck and operator efficiency versus bar code based systems, primarily by eliminating the time it takes to manually scan bar codes from the vehicle and often to leave the vehicle to perform a scan. Exactly how much productivity could be gained would depend on a number of factors, such as the number of scans made, and, interestingly, the average travel distance. The more moves a company makes per operator (lower average travel distances), the greater percent of percent of time an operator probably scans.

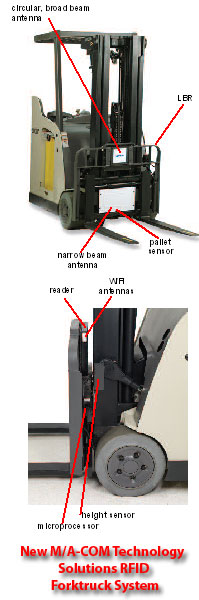

The system (see graphics) includes:



-- An Impinj Speedway EPC Gen 2 RFID reader

-- Acoustic and laser sensors

-- Two reader antennas (broad-beam and narrow-beam), which are built onto koad backreast of the forklift



The broad-beam antenna reads all tags within a wide field of view, while the narrow-beam antenna is more directional and is used to interrogate the shelf tags. The acoustic sensor tells the system that a pallet has been placed on the fork tines and turns on the reader. This enables the system to focus on that pallet tag automatically, and reduces potential issue with “always on” readers as some have used that can become confused about which tag is to be read. Other systems require operators to push a button to avoid this problem, a requirement eliminated with the sensor-based approach.



The system also employs traditional radio frequency capabilities that can be used to send read information to a warehouse management or other system.



The company says it is working with leading fork truck manufacturers to have the system available as an option for their customers.
